Starting March 2019 Total Engineer can interactively generate chamfers. To achieve this a new command in the Modify CAD menu is available.

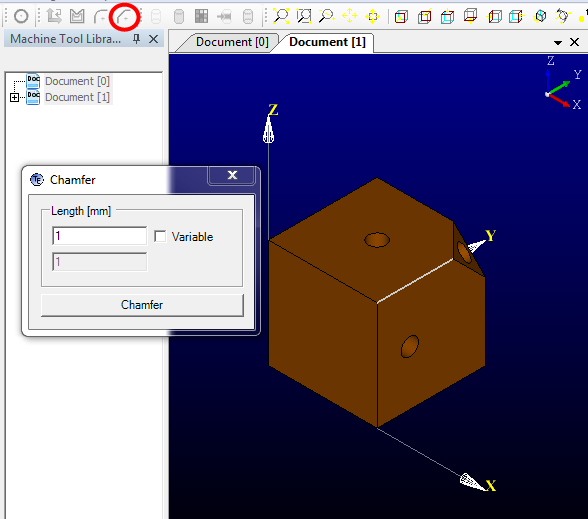

In order to activate this function the user has to select the model he wants to perform the chamfering on and click on the Chamfer button in the toolbar. A dialog appears where the chamfer length (constant ot variable for adjacent faces) can be be defined. Select the edges you want to apply the chamfer to and press Chamfer. That’s it!
