Blends

Starting March 2019 Total Engineer can interactively generate blends. To achieve this a new command in the Modify CAD menu is available.

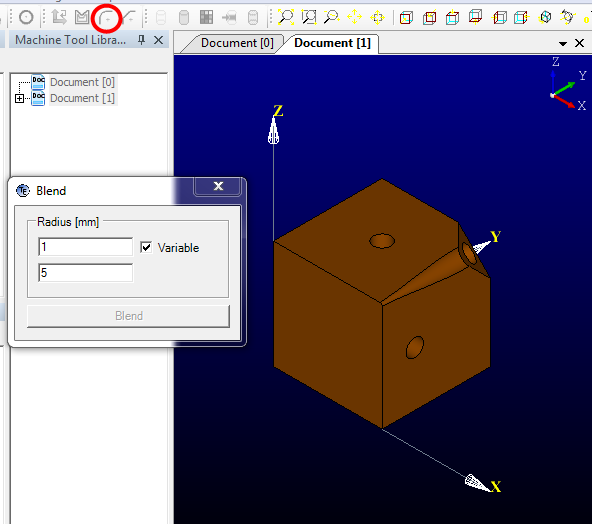

In order to activate this function the user has to select the model he wants to perform the blending on and click on the Blend¬†button in the toolbar. A dialog appears where the blend radius on both ends of the selected edge can be defined. Select the edges you want to apply the blend to and press Blend. That’s it!¬†
